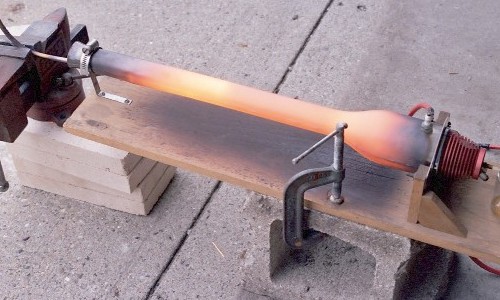

DynaJet static run with pressure gauge tube in exhaust pipe - photo (c) 2003 Cottrill Cyclodyne Corp.
NOISY  HOBBY  OR  HOMELAND  TERROR?
A small pulsejet going full roar 20 seconds after cold startup.
The thin, bent stainless steel tube inserted into the tailpipe
[secured in vise at left] is part of a gas velocity measurement
experiment. The engine shown is a standard DynaJet running white
gasoline as fuel. This is a fairly small engine, only 21 inches
[535mm] long x 2.5 inches [64mm] maximum diameter and weighing
1 lb [approx. 0.5 kg], but many homebuilt engines are much larger.
Some types of pulsejets can be homebuilt very simply and
inexpensively, with minimal tooling and virtually no machining!
Photo Copyright 2003 Cottrill Cyclodyne Corp.
