Setup of the valve plate [unbrazed] (c) 2003 Mike Kirney A  THOROUGH  GRILLING

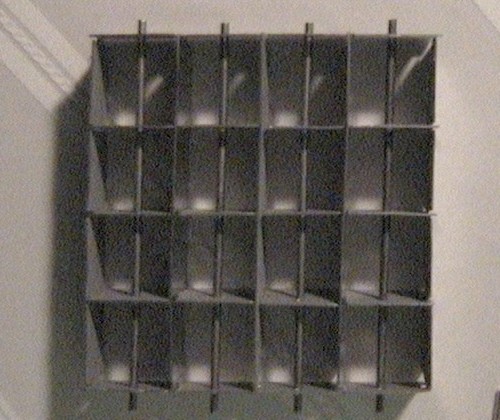

The pieces of the valve grid, carefully set up
before brazing it all together. The steel rods are
vertical in this shot; the brass rods aren't in
place, but they'd lie directly in front of the steel
rods. One folded reed will form a back-to-back
pair of valves in each cell.
Photo Copyright 2003 Mike Kirney
