Reynstodyne 'Shark' engine seen up close from the nose end (c) 2003 Larry Cottrill

Reynstodyne 'Shark' engine seen up close from the tail end (c) 2003 Larry Cottrill

THE  SHARKTM  IN  PERSPECTIVE

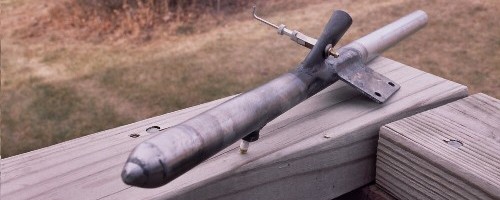

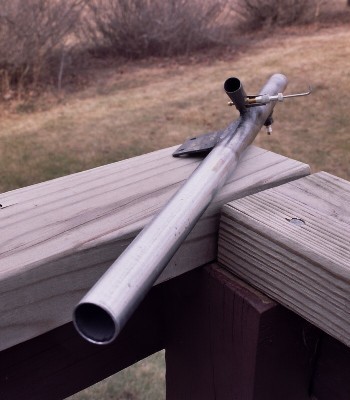

The engine seen from the nose end [upper photo] and exhaust end [lower photo]. Note the
spark plug ahead of and opposite to the 'shark fin' intake tube. In the lower shot, the rim
of the rearward-facing intake opening is visible above the needle valve assembly.
Photos Copyright 2003 Cottrill Cyclodyne Corporation
